Premium Products
Standard Products

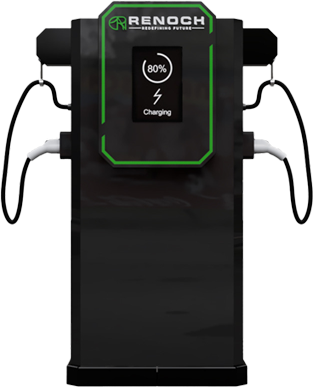

Renoch DC EV Charger
60 KW
CCS2
Dual Gun
Dynamic Load Balancing
Electric Vehicle
IP56 Rated
PRODUCT SPECIFICATION
POWER INPUT
Power Connection
3 P + N + PE
Input Voltage
415 V AC ± 10% Three-Phase Supply
Frequency | Power Factor
50 Hz ± 10% | >0.98
POWER OUTPUT
Rated Power
60 KW = 30 KW X 2 with Dynamic
Load Balancing
Output Current / Voltage
Upto 200A | 200 - 1000 VDC
No. of Output
2 (CCS2)
Compliance
DIN 70121 | ISO / IEC 15118 |
CCS2 | IEC 61851-1
USER INTERFACE & COMMUNICATION
Display
15” X 10” HMI Display, LED Indication
User Authorization
Web Based Software, OCPP 1.6j, RFID
ENVIRONMENT &
MECHANICAL DESIGN
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 70°C
Cooling
Natural Cooling, Forced Cooling For Power Modules
Length Of Charging Gun
5m
Dimension
2000 X 945 X 400
Installation
Ground Mounted With Civil Work
Approximate Weight
Around 200 kg
SAFETY FEATURES
Protection
Over / Under Current,
Over / Under Voltage,
Surge Protection, Short Circuit Protection,
Earth-Leakage, Ground Fault, Smoke Detector,
Temperature Sensor, Emergency Stop Button

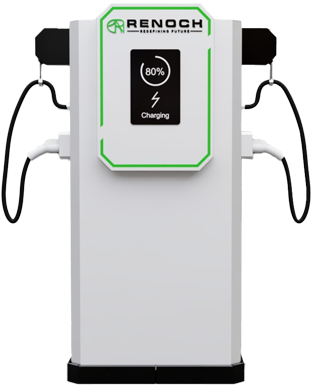

Renoch DC EV Charger
120 KW
CCS2
Dual Gun
Dynamic Load Balancing
Electric Vehicle
IP56 Rated
PRODUCT SPECIFICATION
POWER INPUT
Power Connection
3 P + N + PE
Input Voltage
415 V AC ± 10% Three-Phase Supply
Frequency | Power Factor
50 Hz ± 10% | >0.98
POWER OUTPUT
Rated Power
120 KW = 60 KW X 2 with Dynamic
Load Balancing
Output Current / Voltage
Upto 350A | 200 - 1000 VDC
No. of Output
2 (CCS2)
Compliance
DIN 70121 | ISO / IEC 15118 |
CCS2 | IEC 61851-1
USER INTERFACE & COMMUNICATION
Display
15” X 10” HMI Display, LED Indication
User Authorization
Web Based Software, OCPP 1.6j, RFID
ENVIRONMENT &
MECHANICAL DESIGN
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 70°C
Cooling
Natural Cooling, Forced Cooling For Power Modules
Length Of Charging Gun
5m
Dimension
2000 X 945 X 400
Installation
Ground Mounted With Civil Work
Approximate Weight
Around 200 -250 kg
SAFETY FEATURES
Protection
Over / Under Current,
Over / Under Voltage,
Surge Protection, Short Circuit Protection,
Earth-Leakage, Ground Fault, Smoke Detector,
Temperature Sensor, Emergency Stop Button

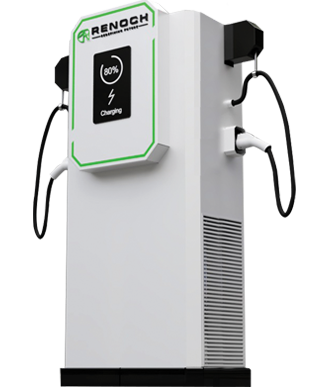

Renoch DC EV Charger
240 KW
CCS2
Dual Gun
Electric Vehicle
IP56 Rated
PRODUCT SPECIFICATION
POWER INPUT
Power Connection
3 P + N + PE
Input Voltage
415 V AC ± 10% Three-Phase Supply
Frequency | Power Factor
50 Hz ± 10% | >0.98
POWER OUTPUT
Rated Power
240 KW = 120 KW X 2 | Stand Alone Mode
Load Balancing
Output Current / Voltage
Upto 250a/Gun | 150 - 1000 VDC
Stand alone Mode
No. of Output
2 (CCS2)
Compliance
DIN 70121 | ISO / IEC 15118 |
CCS2 | IEC 61851-1
USER INTERFACE & COMMUNICATION
Display
15” X 10” HMI Display, LED Indication
User Authorization
Web Based Software, OCPP 1.6j, RFID
ENVIRONMENT &
MECHANICAL DESIGN
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 70°C
Cooling
Natural Cooling, Forced Cooling For Power Modules
Length Of Charging Gun
5m
Dimension
2200 X 1050 X 650 (approx)
Installation
Ground Mounted With Civil Work
Approximate Weight
Around 300 - 400 kg
SAFETY FEATURES
Protection
Over / Under Current,
Over / Under Voltage,
Surge Protection, Short Circuit Protection,
Earth-Leakage, Ground Fault, Smoke Detector,
Temperature Sensor, Emergency Stop Button

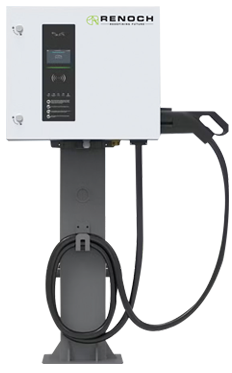

Renoch DC EV Charger
30 KW
CCS2
Dual Gun
Dynamic Load Balancing
Electric Vehicle
IP54 Rated
PRODUCT SPECIFICATION
POWER INPUT
Power Connection
3 P + N + PE
Input Voltage
415 V AC ± 10% Three-Phase Supply
Frequency | Power Factor
50 Hz ± 10% | >0.98
POWER OUTPUT
Rated Power
30 KW = 15 KW X 2
No. of Output
1 (CCS2)
Compliance
DIN 70121 | ISO / IEC 15118 | CCS2 | IEC 61851-1
USER INTERFACE & COMMUNICATION
Display
7” HMI Display, LED Indication
User Authorization
Web Based Software, OCPP, RFID
Network Connectivity
GSM Modem (4G LTE Fallback to 2G), Wi-Fi, Ethernet
Communication Protocol
OCPP v1.6j (Upgradable)
ENVIRONMENT &
MECHANICAL DESIGN
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 70°C
Cooling
Natural Cooling, Forced Cooling For Power Modules
Length Of Charging Gun
5m
Dimension
1704 x 800 x 650 mm
Installation
Ground Mounted With Civil Work
Approximate Weight
Around 200 kg
SAFETY FEATURES
Protection
Over / Under Current,
Over / Under Voltage,
Surge Protection, Short Circuit Protection,
Earth-Leakage, Ground Fault, Smoke Detector,
Temperature Sensor, Emergency Stop Button
Renoch DC EV Charger
60 KW
CCS2
Dual Gun
Dynamic Load Balancing
Electric Vehicle
IP56 Rated
PRODUCT SPECIFICATION
POWER INPUT
Power Connection
3 P + N + PE
Input Voltage
415 V AC ± 10% Three-Phase Supply
Frequency | Power Factor
50 Hz ± 10% | >0.98
POWER OUTPUT
Rated Power
60 KW = 30 KW X 2
No. of Output
1 (CCS2)
Compliance
DIN 70121 | ISO / IEC 15118 | CCS2 | IEC 61851-1
USER INTERFACE & COMMUNICATION
7” HMI Display, LED Indication
User Authorization
Web Based Software, OCPP, RFID
Network Connectivity
GSM Modem(4G LTE Fallback to 2G), Wi-Fi, Etherne
Communication Protocol
OCPP v1.6j(Upgradable)
ENVIRONMENT &
MECHANICAL DESIGN
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 70°C
Cooling
Natural Cooling, Forced Cooling For Power Modules
Length Of Charging Gun
5m
Dimension
1704 X 800 X 650 mm
Installation
Ground Mounted With Civil Work
Approximate Weight
Around 200 kg
SAFETY FEATURES
Protection
Over / Under Current,
Over / Under Voltage,
Surge Protection, Short Circuit Protection,
Earth-Leakage, Ground Fault, Smoke Detector,
Temperature Sensor, Emergency Stop Button

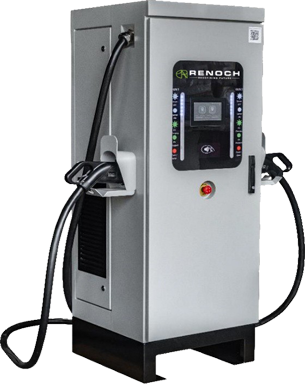

Renoch DC EV Charger
120 KW
CCS2
Dual Gun
Dynamic Load Balancing
Electric Vehicle
IP56 Rated
PRODUCT SPECIFICATION
POWER INPUT
Power Connection
3 P + N + PE
Input Voltage
415 V AC ± 10% Three-Phase Supply
Frequency | Power Factor
50 Hz ± 10% | >0.98
POWER OUTPUT
Rated Power
120 KW = 60 KW X 2
Output Current / Voltage
Upto 350A | 200 - 1000 VDC
No. of Output
2 (CCS2)
Compliance
DIN 70121 | ISO / IEC 15118 |
CCS2 | IEC 61851-1
USER INTERFACE & COMMUNICATION
7” HMI Display, LED Indication
User Authorization
Web Based Software, OCPP, RFID
Network Connectivity
GSM Modem(4G LTE Fallback to 2G), Wi-Fi, Ethernet
Communication Protocol
OCPP v1.6j(Upgradable)
ENVIRONMENT &
MECHANICAL DESIGN
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 70°C
Cooling
Natural Cooling, Forced Cooling For Power Modules
Length Of Charging Gun
5m
Dimension
1704 X 800 X 650 mm
Installation
Ground Mounted With Civil Work
Approximate Weight
Around 200 - 250 kg
SAFETY FEATURES
Protection
Over / Under Current,
Over / Under Voltage,
Surge Protection, Short Circuit Protection,
Earth-Leakage, Ground Fault, Smoke Detector,
Temperature Sensor, Emergency Stop Button
Renoch DC EV Charger
180 KW
CCS2
Dual Gun
Dynamic Load Balancing
Electric Vehicle
IP54 Rated
PRODUCT SPECIFICATION
POWER INPUT
Power Connection
3 P + N + PE
Input Voltage
415 V AC ± 10% Three-Phase Supply
Frequency | Power Factor
50 Hz ± 10% | >0.98
POWER OUTPUT
Rated Power
180 KW = 90 KW X 2
Output Current / Voltage
Upto 350A | 200 - 1000 VDC
No. of Output
2 (CCS2)
Compliance
DIN 70121 | ISO / IEC 15118 |
CCS2 | IEC 61851-1
USER INTERFACE & COMMUNICATION
7” HMI Display, LED Indication
User Authorization
Web Based Software, OCPP, RFID
Network Connectivity
GSM Modem(4G LTE Fallback to 2G), Wi-Fi, Ethernet
Communication Protocol
OCPP v1.6j(Upgradable)
ENVIRONMENT &
MECHANICAL DESIGN
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 70°C
Cooling
Natural Cooling, Forced Cooling For Power Modules
Length Of Charging Gun
5m
Dimension
1704 x 800 x 650 mm
Installation
Ground Mounted With Civil Work
Approximate Weight
Around 200 - 250 kg
SAFETY FEATURES
Protection
Over / Under Current,
Over / Under Voltage,
Surge Protection, Short Circuit Protection,
Earth-Leakage, Ground Fault, Smoke Detector,
Temperature Sensor, Emergency Stop Button

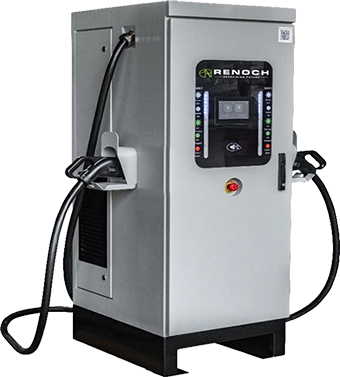

Renoch DC EV Charger
240 KW
CCS2
Dual Gun
Dynamic Load Balancing
Electric Vehicle
IP54 Rated
PRODUCT SPECIFICATION
POWER INPUT
Power Connection
3 P + N + PE
Input Voltage
415 V AC ± 10% Three-Phase Supply
Frequency | Power Factor
50 Hz ± 10% | >0.98
POWER OUTPUT
Rated Power
240 KW = 120 KW X 2
Output Current / Voltage
Upto 350A | 200 - 1000 VDC
No. of Output
2 (CCS2)
Compliance
DIN 70121 | ISO / IEC 15118 |
CCS2 | IEC 61851-1
USER INTERFACE & COMMUNICATION
7” HMI Display, LED Indication
User Authorization
Web Based Software, OCPP, RFID
Network Connectivity
GSM Modem(4G LTE Fallback to 2G), Wi-Fi, Ethernet
Communication Protocol
OCPP v1.6j(Upgradable)
ENVIRONMENT &
MECHANICAL DESIGN
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 70°C
Cooling
Natural Cooling, Forced Cooling For Power Modules
Length Of Charging Gun
5m
Dimension
1704 X 800 X 650 mm
Installation
Ground Mounted With Civil Work
Approximate Weight
Around 300 kg
SAFETY FEATURES
Protection
Over / Under Current,
Over / Under Voltage,
Surge Protection, Short Circuit Protection,
Earth-Leakage, Ground Fault, Smoke Detector,
Temperature Sensor, Emergency Stop Button
